The table layout in Lightspeed Restaurant offers a visual, customizable floor plan that helps you manage table service efficiently. Staff can instantly see which tables are occupied, waiting to order, being served, or ready to be cleared.
To enable and use the Tables feature on the POS, you need to be on the Manage plan. Check your plan by navigating to the subscriptions tab in Back Office.
What's in this guide?
Enabling Tables in Back Office
Customizing your table layout
Frequently asked questions
Enabling Tables in Back Office
To start customizing and using the table layout on your POS, the Tables feature must be enabled in Back Office.
The Tables feature is not compatible when combined with the Group Ordering feature. Using both on the same site may lead to issues, particularly with order printing.
To enable Tables in Back Office:
- Log in to Back Office with your Lightspeed credentials.

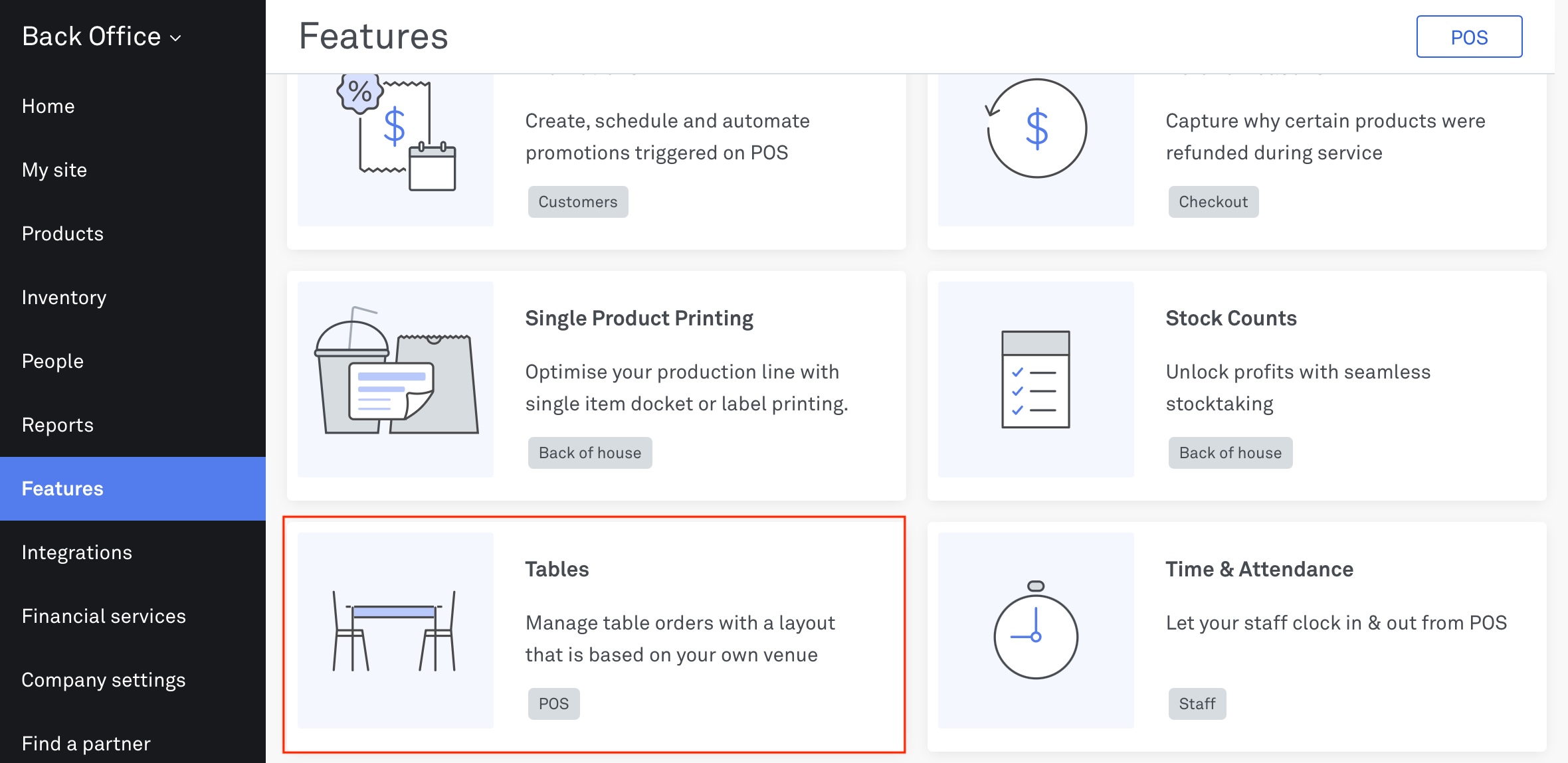

- From the navigation menu, select Features.
- Search for and select Tables.

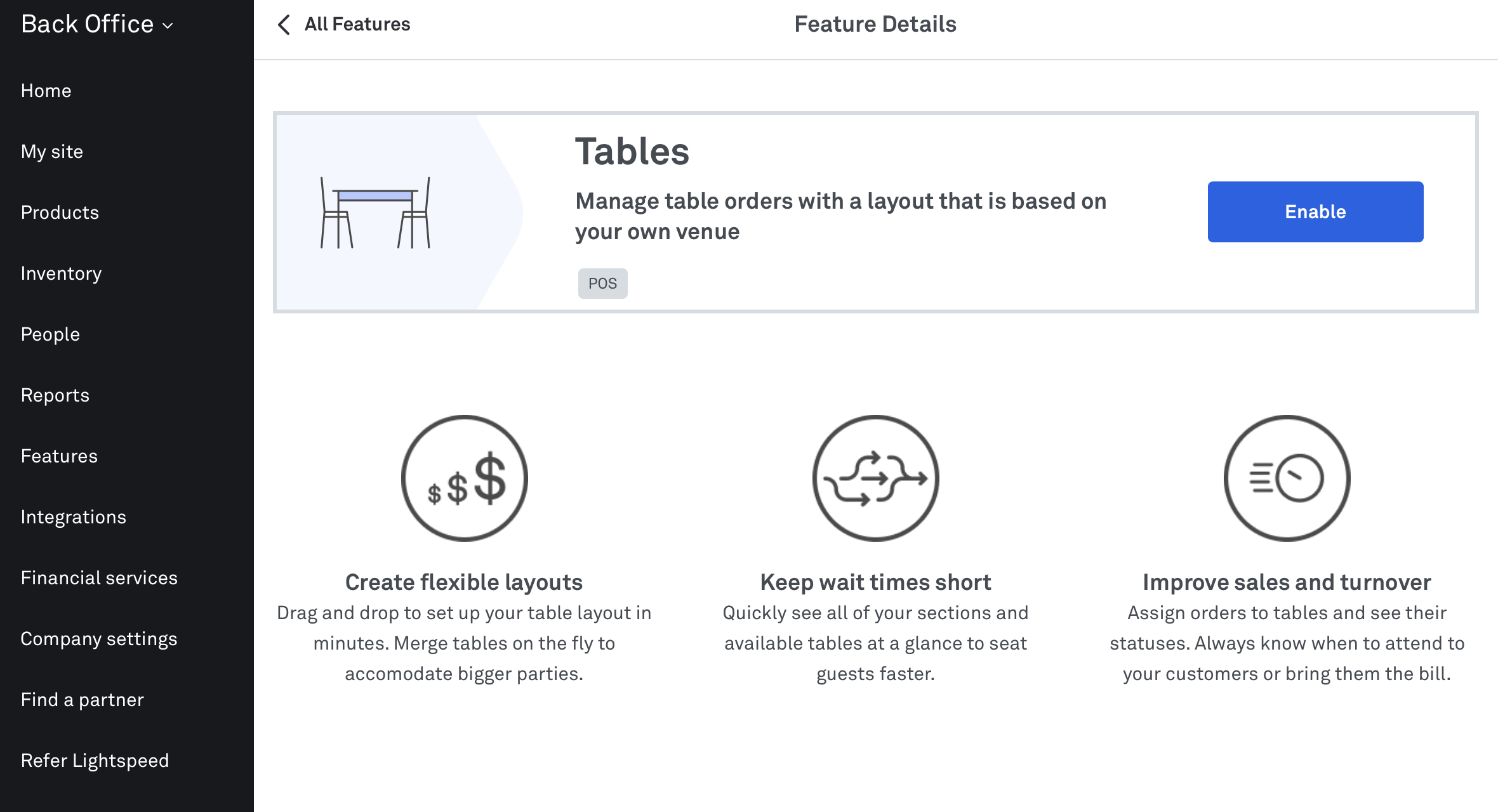

- Click Enable.
Customizing your table layout
Once the Tables feature is enabled, you can configure your floor plan to reflect your venue's actual layout. Use the built-in layout editor on the POS to add, move, and edit tables, chairs, flooring, and sections.
To customize your table layout:
- On the POS, select Tables.
- The default table layout will appear. Select Edit to start customizing your floor plan.

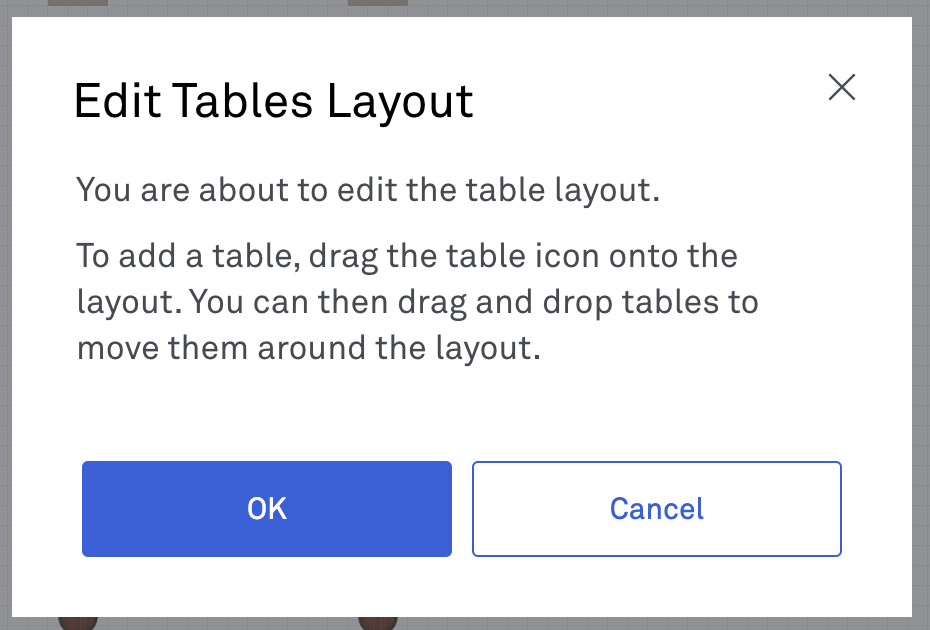

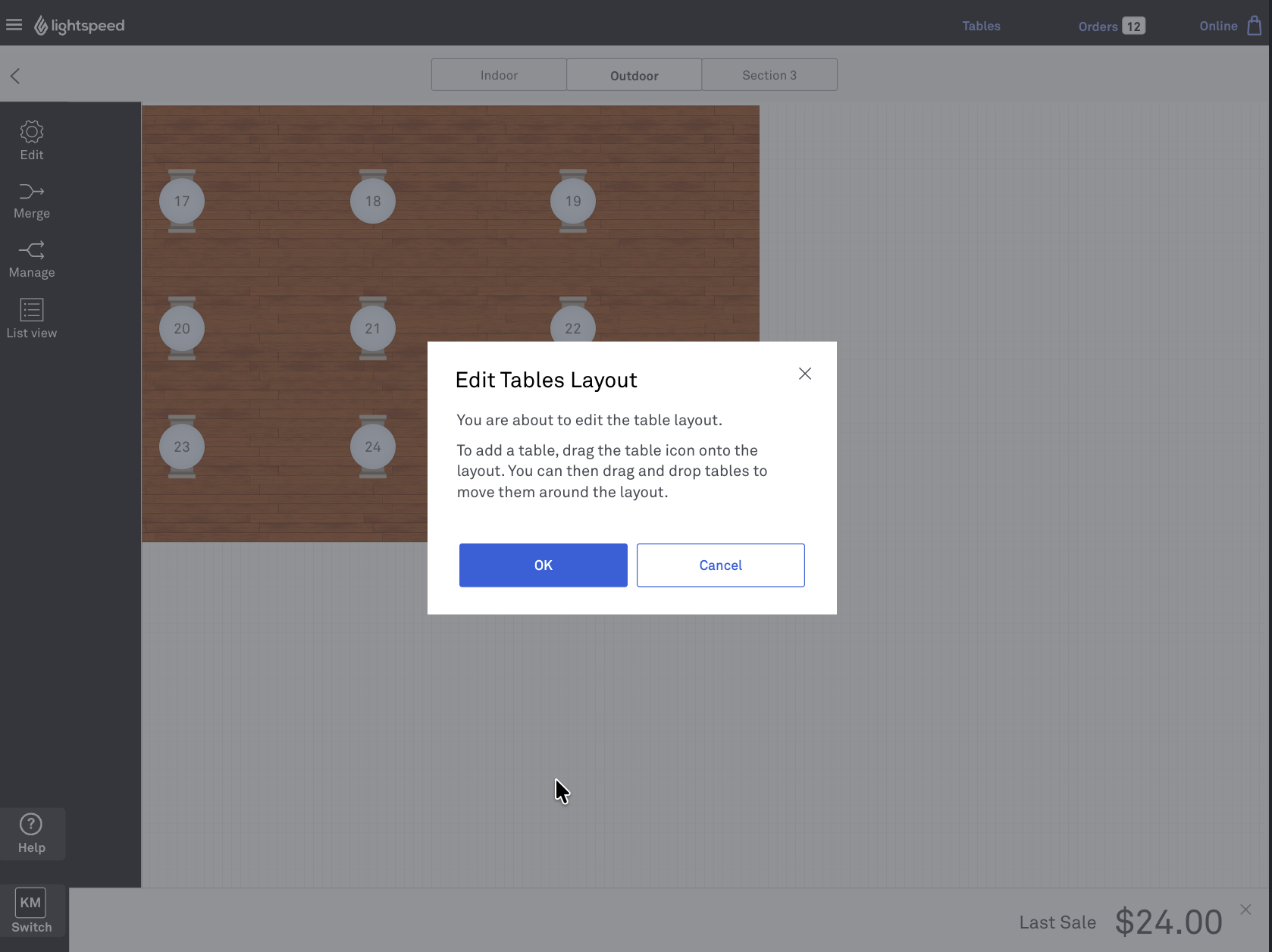

- A dialog box will appear confirming that you're about to enter editing mode. Select OK to proceed.
Use the layout editor in Lightspeed Restaurant to tailor your floor plan to match your venue's real setup. Below are some common customization tasks and how to complete them:
- Change table shape: Delete the existing default table and add a new one in your desired shape, such as circle, square, or rectangle.
- Change the table number: Select the table and edit the number in the dialog box that appears.
-
Add flooring: Drag a floor design onto the canvas and resize as needed. Even if you drag it over other items, it will automatically be underneath them.
-
Resize a table or other items: Resize tables, structures, and floor designs by hovering over the edge of the item. When the resize cursor appears, click and drag to adjust to the desired size.
-

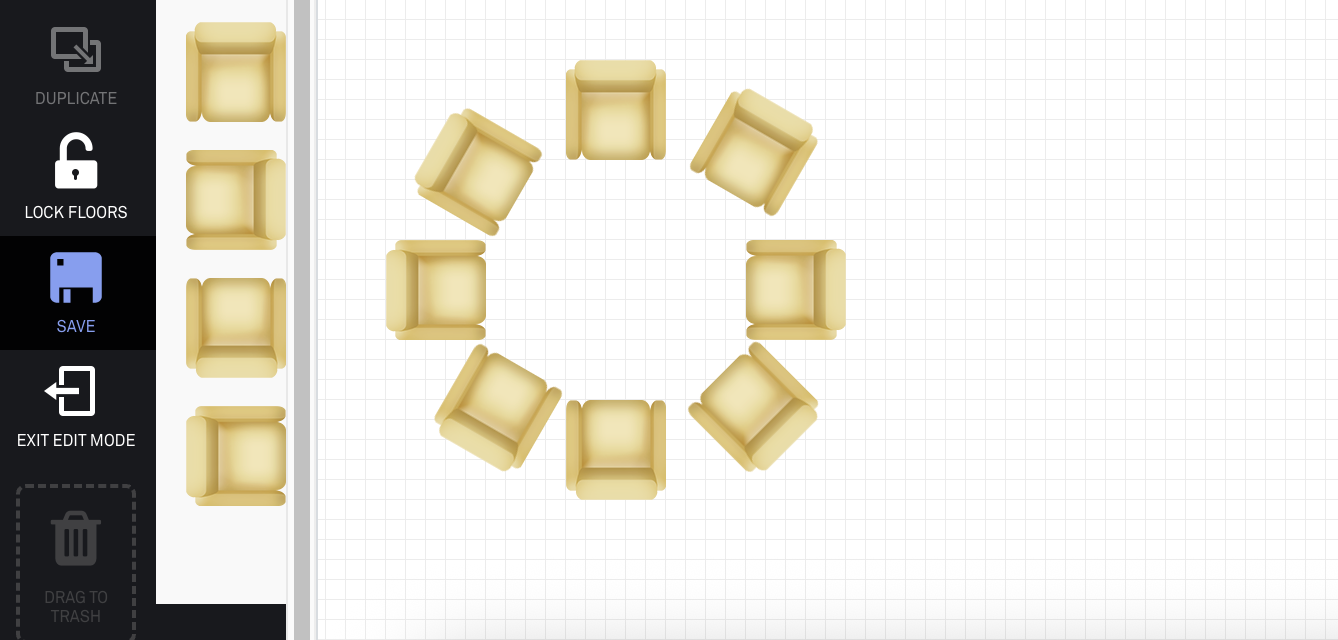

Turn a chair around: Choose from four chair orientations in the menu. Once a chair is placed on the canvas, click it to rotate counterclockwise and adjust its direction.
-

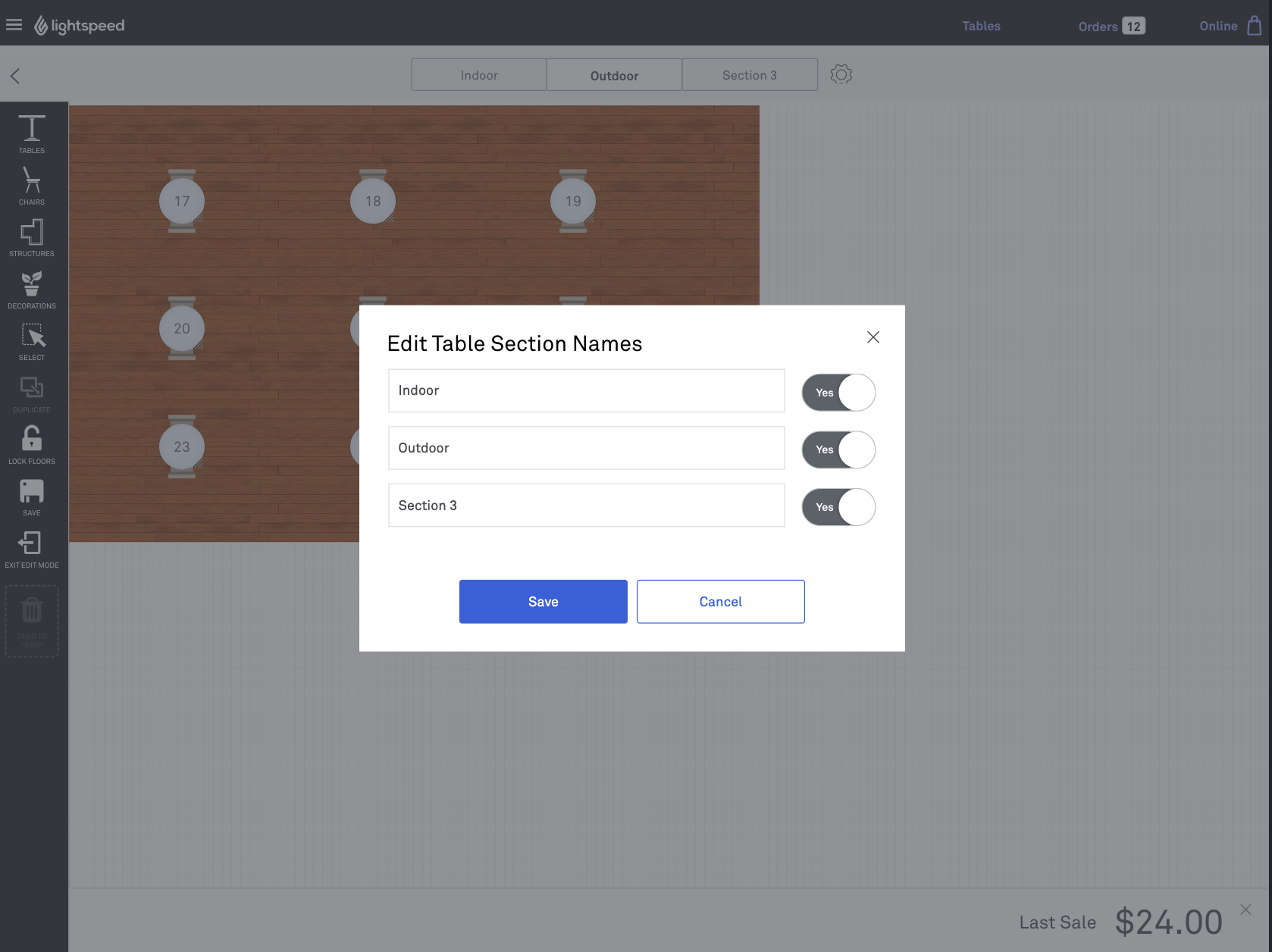

Hide a section or change section names: Click the cogwheel icon to open settings. To rename a section, enter the new name in the Section Name field. To hide a section, toggle the switch next to the section name to No, then click Save.
Frequently asked questions
Lightspeed Insights provides access to data to help you understand what's working and what's not in your venue's layout. Use the Lightspeed Tables Dashboard and explore these insights to optimize your floor plan and service strategy.
Yes, you can. You can also specify which register devices will use the table layout as their default home screen. To configure this, refer to our guide on register-specific workflow settings.
What's next?
Learn how to organize items into courses to streamline service flow and production printing for your kitchen.
Learn how to set up your register workflow to match your venue's operations.
