This guide walks you through setting up and pairing your SocketScan S700 barcode scanner with an iPad. You'll learn how to power on the scanner, connect it to your POS device, and troubleshoot pairing issues.
What's in this guide?
Charging your barcode scanner
Pairing the scanner with your iPad
Troubleshooting
Charging your barcode scanner
To ensure your SocketScan S700 is ready for use, start by charging the scanner. Fully charge your barcode scanner for six hours before using it for the first time.
To charge your barcode scanner:
- Connect one end of the charging cable to the power port on the right side of the barcode scanner.
- Connect the other end of the charging cable to an AC power supply. Connecting it to a computer's USB port is not recommended.
- Connect the AC Power Supply to a power outlet. The barcode scanner's battery light, located at the top left of the scan button, turns amber while charging. Once fully charged, the light changes to green.
For more in-depth information on the SocketScan S700 series barcode scanners, refer to Socket Mobile's User Guide.
Pairing the scanner with your iPad
You can pair your S700 scanner using the Socket Mobile Companion app. Follow the steps below to pair your SocketScan barcode scanner with your device.
The Socket Mobile Companion app is a third-party application and is not supported by Lightspeed Restaurant. For any issues related to accessing, pairing, or navigating the app that are not covered in this guide, contact Socket Mobile Support for assistance.
To pair your scanner with your iPad:
- Turn on your barcode scanner by pressing and holding the Power button. The battery light will turn on, the blue Bluetooth light will begin blinking rapidly, and the scanner will beep twice.
- Install the Socket Mobile Companion app.
- Pair the scanner by following the on-screen setup instructions in the app.
- Once paired, navigate to the device menu in the app.
- Switch mode to Basic Keyboard (HID). This will then prompt you to update the connection in your iPad settings.
- Open the Settings app on your iPad.
- Tap Bluetooth.
- Under My Devices, find the S700 scanner and tap the info (i) icon next to it.
- Tap Forget This Device > Forget Device.
- Under Other Devices, locate the S700 scanner name and tap it to pair again.
Once paired, the scanner will now function in Basic Keyboard (HID) mode, which is required for use with Lightspeed Restaurant.
For guidance on assigning barcodes to products, configuring POS search settings, and processing transactions with barcodes, refer to our article on using barcode scanners with Lightspeed Restaurant.
Troubleshooting
If you've paired the wrong barcode scanner, press and hold the Scan button followed by the Power button. This will power it off. When you turn it back on, the blue Bluetooth light will blink quickly, indicating it's discoverable again and ready to be paired.
If you're having trouble pairing your scanner, a factory reset can often resolve the issue. Resetting the scanner restores it to its default settings, clearing any previous pairings or configuration conflicts. There are two ways to perform a factory reset.
Automatic Factory Reset
Scan the barcode below. The scanner will power off after scanning.
Manual Factory Reset

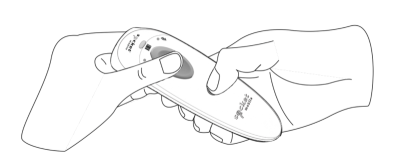

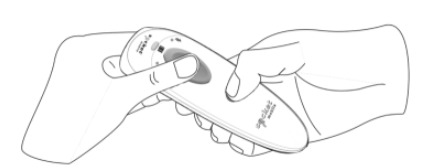

- Power on the barcode scanner.
- Press and hold the Scan button.
- While holding down the Scan button, press the Power button once.
- Continue holding the Scan button for about 15 seconds until you hear a beep, then release it. The scanner will beep 5 times and power off.
- Pair the scanner with your iPad again.
